calibration.h File Reference

Calibration values definition. More...

#include "config.h"

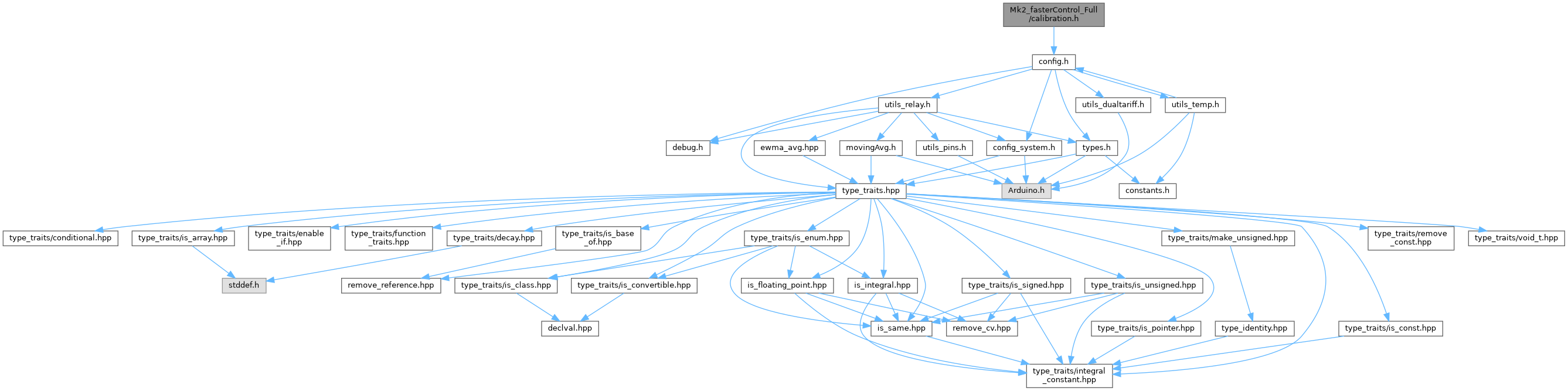

Include dependency graph for calibration.h:

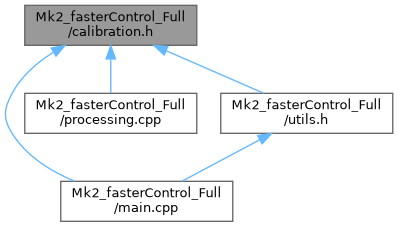

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Variables
constexpr float	alpha { 0.0011 }
constexpr float	f_voltageCal { 0.805653f }
constexpr float	lpf_gain { 9 }
constexpr float	powerCal_diverted { 0.04446f }
constexpr float	powerCal_grid { 0.0436f }

Detailed Description

Calibration values definition.

Author

Frédéric Metrich (frede.nosp@m.ric..nosp@m.metri.nosp@m.ch@l.nosp@m.ive.f.nosp@m.r)

Version

0.1

Date

2021-10-04

Copyright

Copyright (c) 2023

Definition in file calibration.h.

Variable Documentation

alpha

float alpha { 0.0011 }

inlineconstexpr

Definition at line 40 of file calibration.h.

Referenced by processGridCurrentRawSample().

f_voltageCal

float f_voltageCal { 0.805653f }

inlineconstexpr

compared with Sentron PAC 4200

Definition at line 37 of file calibration.h.

Referenced by processCalculationsForLogging().

lpf_gain

float lpf_gain { 9 }

inlineconstexpr

setting this to 0 disables this extra processing

Definition at line 39 of file calibration.h.

Referenced by processGridCurrentRawSample().

powerCal_diverted

float powerCal_diverted { 0.04446f }

inlineconstexpr

Definition at line 35 of file calibration.h.

Referenced by printConfiguration(), and processCalculationsForLogging().

powerCal_grid

float powerCal_grid { 0.0436f }

inlineconstexpr

Definition at line 34 of file calibration.h.

Referenced by printConfiguration(), and processCalculationsForLogging().
