constants.h File Reference

Some constants. More...

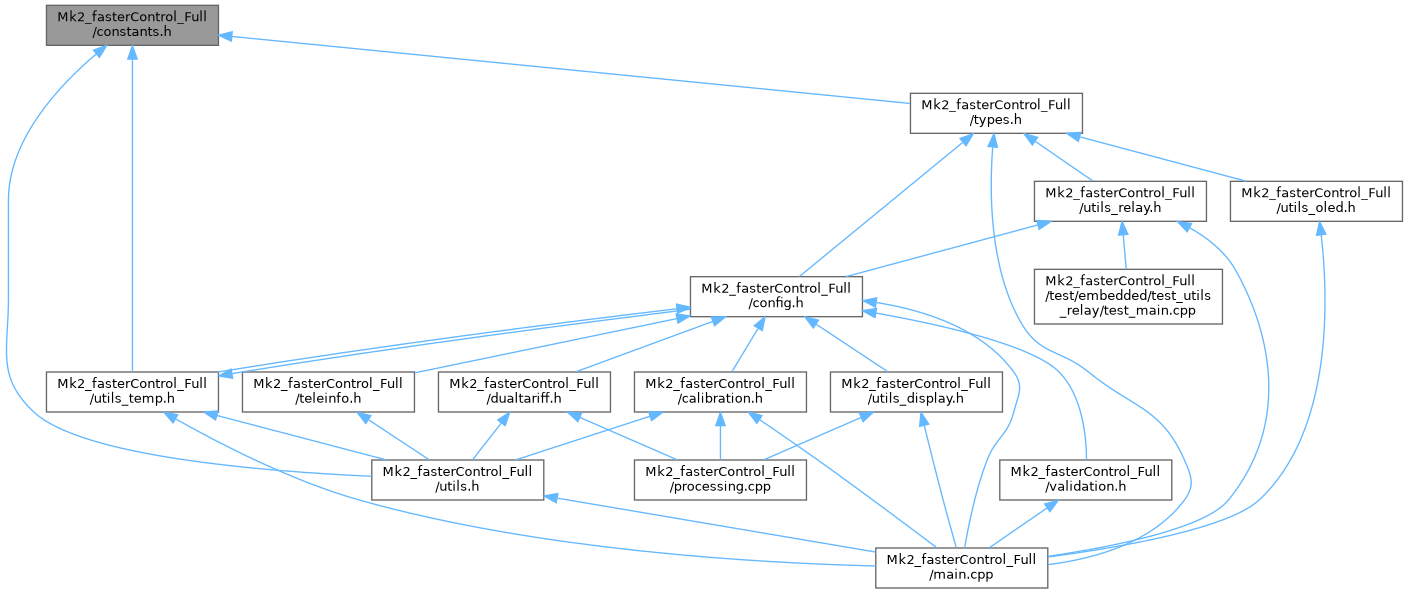

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Variables
constexpr uint8_t	CONVERT_TEMPERATURE { 0x44 }
constexpr int16_t	DEVICE_DISCONNECTED_C { -127 }
constexpr int16_t	DEVICE_DISCONNECTED_RAW { -7040 }
constexpr int16_t	OUTOFRANGE_TEMPERATURE { 30200 }
constexpr uint8_t	READ_SCRATCHPAD { 0xBE }
constexpr int16_t	TEMP_RANGE_HIGH { 12500 }
constexpr int16_t	TEMP_RANGE_LOW { -5500 }
constexpr uint8_t	WRITE_SCRATCH { 0x4E }

Detailed Description

Some constants.

Author

Frédéric Metrich (frede.nosp@m.ric..nosp@m.metri.nosp@m.ch@l.nosp@m.ive.f.nosp@m.r)

Version

0.1

Date

2021-10-04

Copyright

Copyright (c) 2021

Definition in file constants.h.

Variable Documentation

CONVERT_TEMPERATURE

uint8_t CONVERT_TEMPERATURE { 0x44 }

inlineconstexpr

Definition at line 16 of file constants.h.

Referenced by TemperatureSensing< N >::requestTemperatures().

DEVICE_DISCONNECTED_C

int16_t DEVICE_DISCONNECTED_C { -127 }

inlineconstexpr

Definition at line 24 of file constants.h.

DEVICE_DISCONNECTED_RAW

int16_t DEVICE_DISCONNECTED_RAW { -7040 }

inlineconstexpr

Definition at line 25 of file constants.h.

Referenced by printForJSON(), printForSerialText(), TemperatureSensing< N >::readTemperature(), sendTelemetryData(), and updateTemperature().

OUTOFRANGE_TEMPERATURE

int16_t OUTOFRANGE_TEMPERATURE { 30200 }

inlineconstexpr

this value (302C) is sent if the sensor reports < -55C or > +125C

Definition at line 20 of file constants.h.

Referenced by printForJSON(), printForSerialText(), TemperatureSensing< N >::readTemperature(), and sendTelemetryData().

READ_SCRATCHPAD

uint8_t READ_SCRATCHPAD { 0xBE }

inlineconstexpr

Definition at line 17 of file constants.h.

Referenced by TemperatureSensing< N >::readTemperature().

TEMP_RANGE_HIGH

int16_t TEMP_RANGE_HIGH { 12500 }

inlineconstexpr

Definition at line 22 of file constants.h.

Referenced by TemperatureSensing< N >::readTemperature().

TEMP_RANGE_LOW

int16_t TEMP_RANGE_LOW { -5500 }

inlineconstexpr

Definition at line 21 of file constants.h.

WRITE_SCRATCH

uint8_t WRITE_SCRATCH { 0x4E }

inlineconstexpr

Definition at line 18 of file constants.h.
