processing.h File Reference

Public functions/variables of processing engine. More...

#include "shared_var.h"

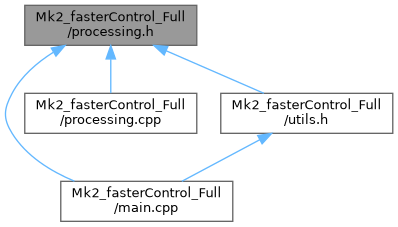

Include dependency graph for processing.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	confirmPolarity ()
	Confirms the polarity of the current voltage sample.
void	initializeOldPCBPins ()
	Initializes optional pins for the old PCB configuration.
void	initializeProcessing ()
	Initializes the processing engine, including ports, load states, and ADC setup.
void	logLoadPriorities ()
	Prints the load priorities to the Serial output.
uint8_t	nextLogicalLoadToBeAdded ()
	Retrieve the next load that could be removed (be aware of the reverse-order).
uint8_t	nextLogicalLoadToBeRemoved ()
	Process with data logging.
void	printParamsForSelectedOutputMode ()
	Print the settings used for the selected output mode.
void	proceedHighEnergyLevel ()
	Process the case of high energy level, some action may be required.
void	proceedLowEnergyLevel ()
	Process the case of low energy level, some action may be required.
void	processDataLogging ()
	Process with data logging.
void	processDivertedCurrentRawSample (int16_t rawSample)
	Processes the raw current sample for the diverted connection point.
void	processGridCurrentRawSample (int16_t rawSample)
	Processes the raw current sample for the grid connection point.
void	processLatestContribution ()
	Process the latest contribution after each new cycle.
void	processMinusHalfCycle ()
	Process the start of a new -ve half cycle, just after the zero-crossing point.
void	processPlusHalfCycle ()
	Process the start of a new +ve half cycle, just after the zero-crossing point.
void	processPolarity (int16_t rawSample)
	Processes the polarity of the current voltage sample.
void	processRawSamples ()
	This routine is called by the ISR when a pair of V & I samples becomes available.
void	processStartNewCycle ()
	This code is executed once per 20ms, shortly after the start of each new mains cycle on phase 0.
void	processStartUp ()
	Process the startup period for the router.
void	processVoltage ()
	Process the calculation for the current voltage sample.
void	processVoltageRawSample (int16_t rawSample)
	Process the current voltage raw sample.
void	updatePhysicalLoadStates ()
	This function provides the link between the logical and physical loads.
void	updatePortsStates ()
	Updates the control ports for each of the physical loads.

Detailed Description

Public functions/variables of processing engine.

Author

Frédéric Metrich (frede.nosp@m.ric..nosp@m.metri.nosp@m.ch@l.nosp@m.ive.f.nosp@m.r)

Version

0.1

Date

2024-10-03

Copyright

Copyright (c) 2025

Definition in file processing.h.

Function Documentation

printParamsForSelectedOutputMode()

void printParamsForSelectedOutputMode

(

)

Print the settings used for the selected output mode.

This function outputs the configuration parameters related to the selected output mode. It is primarily used for debugging and verifying the system's configuration.

• Prints the zero-crossing persistence value in sample sets.
• Prints the capacity of the energy bucket in integer energy units.

Definition at line 1176 of file processing.cpp.

References capacityOfEnergyBucket_long, DBUG, DBUGLN, and PERSISTENCE_FOR_POLARITY_CHANGE.

Referenced by printConfiguration().
