utils_display.h File Reference

7-segments display functions More...

#include "config_system.h"
#include "config.h"
#include "FastDivision.h"

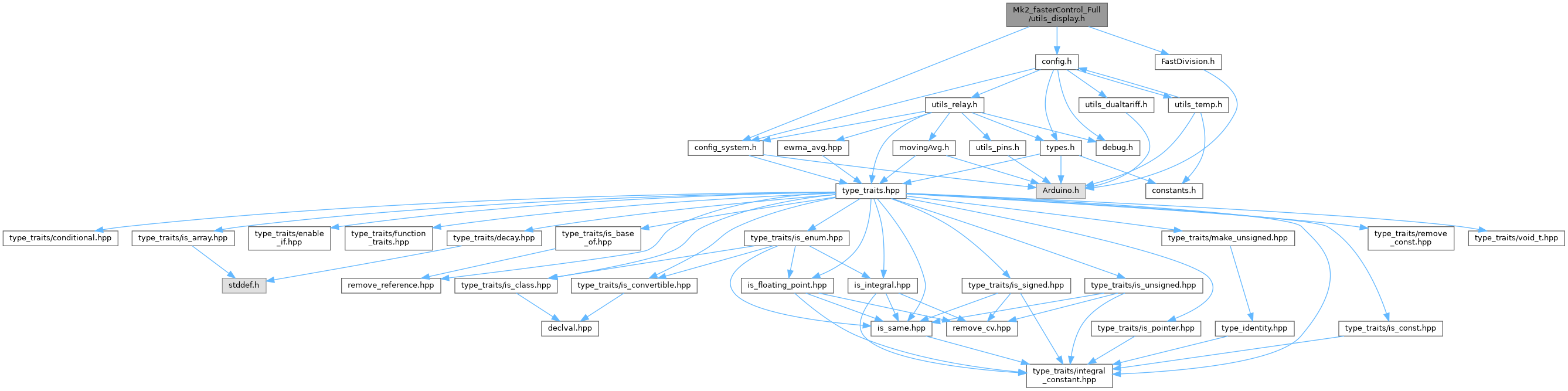

Include dependency graph for utils_display.h:

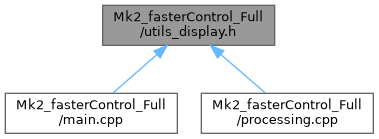

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum class	DigitEnableStates : uint8_t { DIGIT_ENABLED , DIGIT_DISABLED }

Functions
void	configureValueForDisplay (const bool _EDD_isActive, const uint16_t _ValueToDisplay, const bool _diversionEnabled=false, const bool _loadForced=false)
	Configures the value for display on a 7-segment display.
void	displayForced ()
	Displays "FORC" on the 7-segment display for forced load override.
void	displayOff ()
	Displays "OFF" on the 7-segment display.
void	initializeDisplay ()
	Initializes the display for hardware-driven 7-segment displays.
void	initializeDisplayHW ()
	Initializes the display for hardware-driven 7-segment displays.
void	initializeDisplaySW ()
	Initializes the display for software-driven 7-segment displays.
void	refresh7SegDisplay ()
	Refreshes the display by updating the active digit and its segments.
void	update7SegmentHWDisplay ()
	Updates the 7-segment display for the next digit (hardware-driven).
void	update7SegmentSWDisplay ()
	Updates the 7-segment display for the next digit (software-driven).

Variables
uint8_t	charsForDisplay [noOfDigitLocations] { 20, 20, 20, 20 }
constexpr uint8_t	decimalPointLine { 14 }
constexpr uint8_t	digitLocationLine [noOfDigitLocationLines] { 16, 15 }
constexpr uint8_t	digitLocationMap [noOfDigitLocations][noOfDigitLocationLines]
constexpr uint8_t	digitSelectionLine [noOfDigitSelectionLines] { 7, 9, 8, 6 }
constexpr uint8_t	digitSelectorPin [noOfDigitLocations] { 16, 10, 13, 11 }
constexpr uint8_t	digitValueMap [noOfPossibleCharacters][noOfDigitSelectionLines]
constexpr uint8_t	DISPLAY_SHUTDOWN_IN_HOURS { 8 }
constexpr uint32_t	displayShutdown_inMainsCycles { DISPLAY_SHUTDOWN_IN_HOURS * mainsCyclesPerHour }
constexpr uint8_t	DPstatus_columnID { noOfDigitSelectionLines }
constexpr uint8_t	DRIVER_CHIP_DISABLED { HIGH }
constexpr uint8_t	DRIVER_CHIP_ENABLED { LOW }
constexpr uint8_t	enableDisableLine { 5 }
constexpr uint8_t	MAX_DISPLAY_TIME_COUNT { 10 }
constexpr uint8_t	noOfDigitLocationLines { 2 }
constexpr uint8_t	noOfDigitLocations { 4 }
constexpr uint8_t	noOfDigitSelectionLines { 4 }
constexpr uint8_t	noOfPossibleCharacters { 14 }
constexpr uint8_t	noOfSegmentsPerDigit { 8 }
constexpr uint8_t	OFF { LOW }
constexpr uint8_t	ON { HIGH }
constexpr uint8_t	segMap [noOfPossibleCharacters][noOfSegmentsPerDigit - 1]
constexpr uint8_t	segmentDrivePin [noOfSegmentsPerDigit] { 2, 5, 12, 6, 7, 9, 8, 14 }
constexpr uint8_t	UPDATE_PERIOD_FOR_DISPLAYED_DATA { 50 }

Detailed Description

7-segments display functions

Author

Frederic Metrich (frede.nosp@m.ric..nosp@m.metri.nosp@m.ch@l.nosp@m.ive.f.nosp@m.r)

Version

0.1

Date

2024-10-29

Copyright

Copyright (c) 2025

7

Definition in file utils_display.h.

Enumeration Type Documentation

DigitEnableStates

enum class DigitEnableStates : uint8_t

strong

Enumerator
DIGIT_ENABLED
DIGIT_DISABLED

Definition at line 194 of file utils_display.h.

Variable Documentation

charsForDisplay

uint8_t charsForDisplay[noOfDigitLocations] { 20, 20, 20, 20 }

inline

Definition at line 32 of file utils_display.h.

Referenced by configureValueForDisplay(), displayForced(), displayOff(), update7SegmentHWDisplay(), and update7SegmentSWDisplay().

decimalPointLine

uint8_t decimalPointLine { 14 }

inlineconstexpr

Definition at line 53 of file utils_display.h.

Referenced by initializeDisplayHW(), and update7SegmentHWDisplay().

digitLocationLine

uint8_t digitLocationLine[noOfDigitLocationLines] { 16, 15 }

inlineconstexpr

Definition at line 55 of file utils_display.h.

Referenced by check_pins(), initializeDisplayHW(), and update7SegmentHWDisplay().

digitLocationMap

uint8_t digitLocationMap[noOfDigitLocations][noOfDigitLocationLines]

inlineconstexpr

Initial value:

{
  LOW, LOW,
  LOW, HIGH,
  HIGH, LOW,
  HIGH, HIGH,
}

Definition at line 82 of file utils_display.h.

Referenced by update7SegmentHWDisplay().

digitSelectionLine

uint8_t digitSelectionLine[noOfDigitSelectionLines] { 7, 9, 8, 6 }

inlineconstexpr

Definition at line 56 of file utils_display.h.

Referenced by check_pins(), initializeDisplayHW(), and update7SegmentHWDisplay().

digitSelectorPin

uint8_t digitSelectorPin[noOfDigitLocations] { 16, 10, 13, 11 }

inlineconstexpr

Definition at line 200 of file utils_display.h.

Referenced by check_pins(), initializeDisplaySW(), and update7SegmentSWDisplay().

digitValueMap

uint8_t digitValueMap[noOfPossibleCharacters][noOfDigitSelectionLines]

inlineconstexpr

Initial value:

{
  LOW, LOW, LOW, LOW,
  LOW, LOW, LOW, HIGH,
  LOW, LOW, HIGH, LOW,
  LOW, LOW, HIGH, HIGH,
  LOW, HIGH, LOW, LOW,
  LOW, HIGH, LOW, HIGH,
  LOW, HIGH, HIGH, LOW,
  LOW, HIGH, HIGH, HIGH,
  HIGH, LOW, LOW, LOW,
  HIGH, LOW, LOW, HIGH,
  HIGH, HIGH, HIGH, HIGH,
  LOW, HIGH, HIGH, HIGH,
  HIGH, LOW, HIGH, LOW,
  LOW, LOW, HIGH, LOW,
}

Definition at line 62 of file utils_display.h.

Referenced by update7SegmentHWDisplay().

DISPLAY_SHUTDOWN_IN_HOURS

uint8_t DISPLAY_SHUTDOWN_IN_HOURS { 8 }

inlineconstexpr

Definition at line 27 of file utils_display.h.

displayShutdown_inMainsCycles

uint32_t displayShutdown_inMainsCycles { DISPLAY_SHUTDOWN_IN_HOURS * mainsCyclesPerHour }

inlineconstexpr

Definition at line 29 of file utils_display.h.

Referenced by processLatestContribution().

DPstatus_columnID

uint8_t DPstatus_columnID { noOfDigitSelectionLines }

inlineconstexpr

Definition at line 80 of file utils_display.h.

DRIVER_CHIP_DISABLED

uint8_t DRIVER_CHIP_DISABLED { HIGH }

inlineconstexpr

Definition at line 45 of file utils_display.h.

Referenced by initializeDisplayHW(), and update7SegmentHWDisplay().

DRIVER_CHIP_ENABLED

uint8_t DRIVER_CHIP_ENABLED { LOW }

inlineconstexpr

Definition at line 46 of file utils_display.h.

Referenced by update7SegmentHWDisplay().

enableDisableLine

uint8_t enableDisableLine { 5 }

inlineconstexpr

Definition at line 52 of file utils_display.h.

Referenced by initializeDisplayHW(), and update7SegmentHWDisplay().

MAX_DISPLAY_TIME_COUNT

uint8_t MAX_DISPLAY_TIME_COUNT { 10 }

inlineconstexpr

Definition at line 30 of file utils_display.h.

Referenced by refresh7SegDisplay().

noOfDigitLocationLines

uint8_t noOfDigitLocationLines { 2 }

inlineconstexpr

Definition at line 50 of file utils_display.h.

Referenced by initializeDisplayHW(), and update7SegmentHWDisplay().

noOfDigitLocations

uint8_t noOfDigitLocations { 4 }

inlineconstexpr

Definition at line 24 of file utils_display.h.

Referenced by configureValueForDisplay(), initializeDisplaySW(), update7SegmentHWDisplay(), and update7SegmentSWDisplay().

noOfDigitSelectionLines

uint8_t noOfDigitSelectionLines { 4 }

inlineconstexpr

Definition at line 49 of file utils_display.h.

Referenced by initializeDisplayHW(), and update7SegmentHWDisplay().

noOfPossibleCharacters

uint8_t noOfPossibleCharacters { 14 }

inlineconstexpr

Definition at line 25 of file utils_display.h.

noOfSegmentsPerDigit

uint8_t noOfSegmentsPerDigit { 8 }

inlineconstexpr

Definition at line 192 of file utils_display.h.

Referenced by initializeDisplaySW(), and update7SegmentSWDisplay().

OFF

uint8_t OFF { LOW }

inlineconstexpr

Definition at line 190 of file utils_display.h.

Referenced by initializeDisplaySW().

ON

uint8_t ON { HIGH }

inlineconstexpr

Definition at line 189 of file utils_display.h.

segMap

uint8_t segMap[noOfPossibleCharacters][noOfSegmentsPerDigit - 1]

inlineconstexpr

Initial value:

{
  ON, ON, ON, ON, ON, ON, OFF,
  OFF, ON, ON, OFF, OFF, OFF, OFF,
  ON, ON, OFF, ON, ON, OFF, ON,
  ON, ON, ON, ON, OFF, OFF, ON,
  OFF, ON, ON, OFF, OFF, ON, ON,
  ON, OFF, ON, ON, OFF, ON, ON,
  ON, OFF, ON, ON, ON, ON, ON,
  ON, ON, ON, OFF, OFF, OFF, OFF,
  ON, ON, ON, ON, ON, ON, ON,
  ON, ON, ON, ON, OFF, ON, ON,
  OFF, OFF, OFF, OFF, OFF, OFF, OFF,
  ON, OFF, OFF, OFF, ON, ON, ON,
  OFF, OFF, OFF, OFF, ON, OFF, ON,
  ON, OFF, OFF, ON, ON, ON, OFF,
}

Definition at line 207 of file utils_display.h.

Referenced by update7SegmentSWDisplay().

segmentDrivePin

uint8_t segmentDrivePin[noOfSegmentsPerDigit] { 2, 5, 12, 6, 7, 9, 8, 14 }

inlineconstexpr

Definition at line 201 of file utils_display.h.

Referenced by check_pins(), initializeDisplaySW(), and update7SegmentSWDisplay().

UPDATE_PERIOD_FOR_DISPLAYED_DATA

uint8_t UPDATE_PERIOD_FOR_DISPLAYED_DATA { 50 }

inlineconstexpr

Definition at line 26 of file utils_display.h.

Referenced by loop().
