Mk2_fasterControl_Full

Some utility functions for pins manipulation. More...

#include <Arduino.h>

Include dependency graph for utils_pins.h:

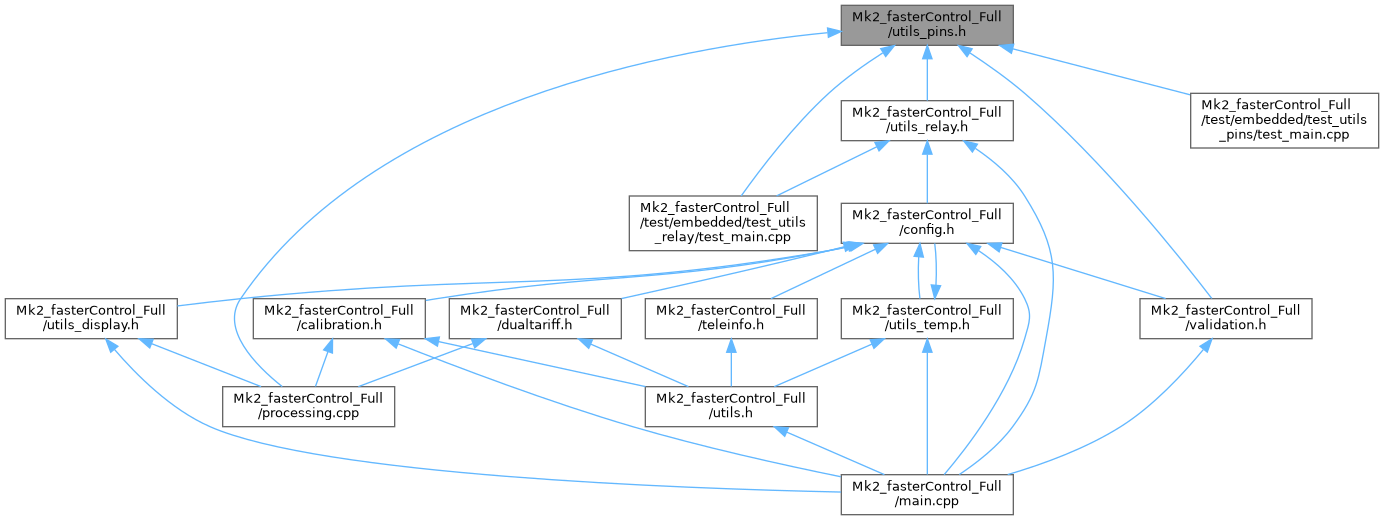

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
template<typename T>
constexpr uint8_t	bit_clear (T &_dest, const uint8_t bit)
	Clear the specified bit.

template<typename T>
constexpr uint8_t	bit_read (const T &_src, const uint8_t bit)
	Read the specified bit.

template<typename T>
constexpr void	bit_set (T &_dest, const uint8_t bit)
	Set the specified bit to 1.

constexpr bool	getPinState (const uint8_t pin)
	Get the Pin State.

constexpr void	setPinOFF (const uint8_t pin)
	Set the Pin state to OFF for the specified pin.

constexpr void	setPinON (const uint8_t pin)
	Set the Pin state to ON for the specified pin.

void	setPinsAsInputPullup (const uint16_t pins)
	Set the pins as INPUT_PULLUP.

void	setPinsAsOutput (const uint16_t pins)
	Set the pins as OUTPUT.

void	setPinsOFF (const uint16_t pins)
	Set the Pins state to OFF.

void	setPinsON (const uint16_t pins)
	Set the Pins state to ON.

constexpr void	setPinState (const uint8_t pin, const bool bState)
	Set the Pin state for the specified pin.

constexpr void	togglePin (const uint8_t pin)
	Toggle the specified pin.

Variables
constexpr uint8_t	unused_pin { 0xff }

Detailed Description

Some utility functions for pins manipulation.

Author: Frédéric Metrich (frede.nosp@m.ric..nosp@m.metri.nosp@m.ch@l.nosp@m.ive.f.nosp@m.r)

Version: 0.1

Date: 2023-05-05

Copyright: Copyright (c) 2023

Definition in file utils_pins.h.

Function Documentation

◆ bit_clear()

template<typename T>

uint8_t bit_clear	(	T &	_dest,
		const uint8_t	bit )

constexpr

Clear the specified bit.

Template Parameters

T	Type of the variable

Parameters

_dest	Integer variable to modify
bit	Bit to clear in _src

Returns: constexpr uint8_t

Definition at line 80 of file utils_pins.h.

Referenced by initializeProcessing(), and setPinOFF().

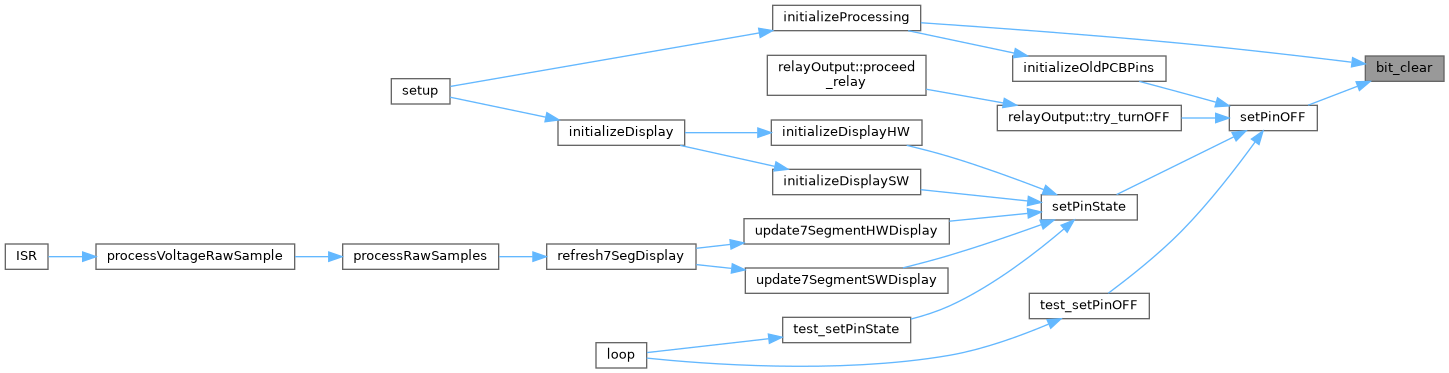

Here is the caller graph for this function:

◆ bit_read()

template<typename T>

uint8_t bit_read	(	const T &	_src,
		const uint8_t	bit )

constexpr

Read the specified bit.

Template Parameters

T	Type of the variable

Parameters

_src	Integer variable to read
bit	Bit to read in _src

Returns: constexpr uint8_t

Definition at line 67 of file utils_pins.h.

Referenced by check_load_priorities(), check_pins(), getInputPins(), getOutputPins(), and getPinState().

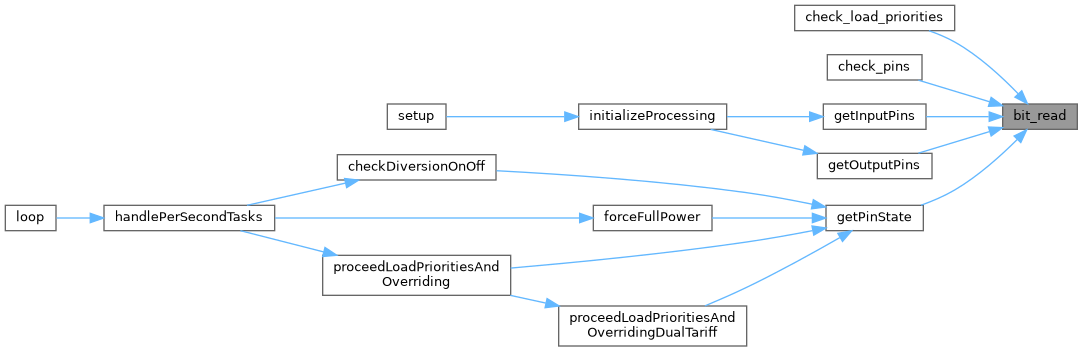

Here is the caller graph for this function:

◆ bit_set()

template<typename T>

void bit_set	(	T &	_dest,
		const uint8_t	bit )

constexpr

Set the specified bit to 1.

Template Parameters

T	Type of the variable

Parameters

_dest	Integer variable to modify
bit	Bit to set in _dest

Definition at line 54 of file utils_pins.h.

Referenced by check_load_priorities(), check_pins(), getInputPins(), getOutputPins(), initializeProcessing(), setPinON(), and togglePin().

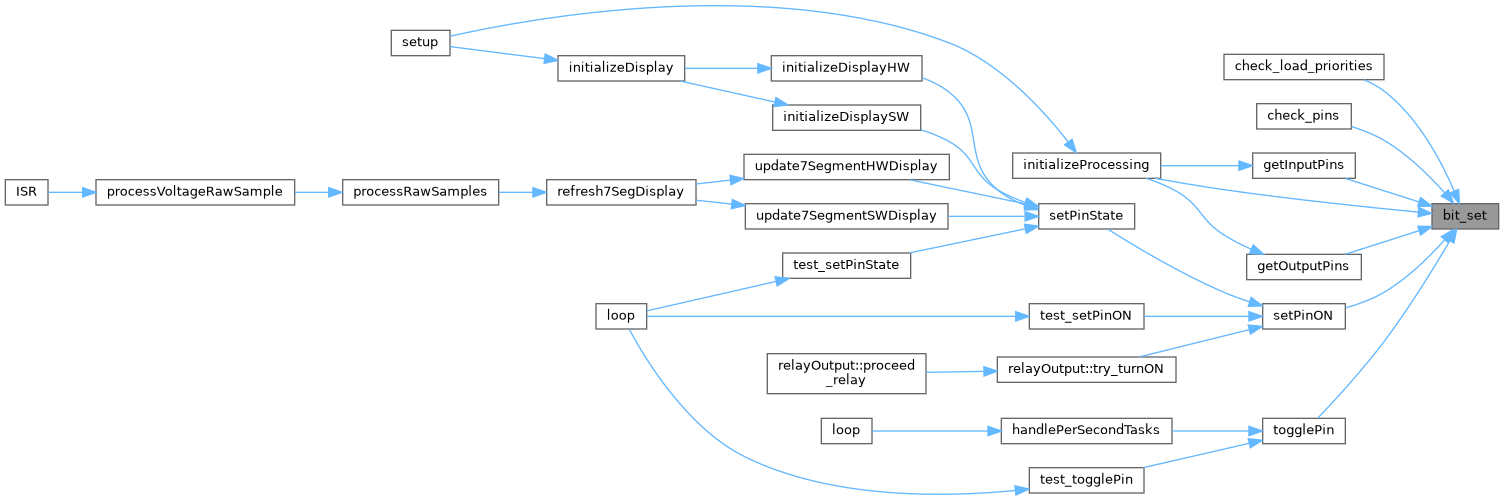

Here is the caller graph for this function:

◆ getPinState()

bool getPinState ( const uint8_t pin )

inlineconstexpr

Get the Pin State.

Parameters

pin	The pin to read

Returns: true if HIGH; false if LOW

Definition at line 194 of file utils_pins.h.

References bit_read().

Referenced by checkDiversionOnOff(), forceFullPower(), proceedLoadPrioritiesAndOverriding(), and proceedLoadPrioritiesAndOverridingDualTariff().

Here is the call graph for this function:

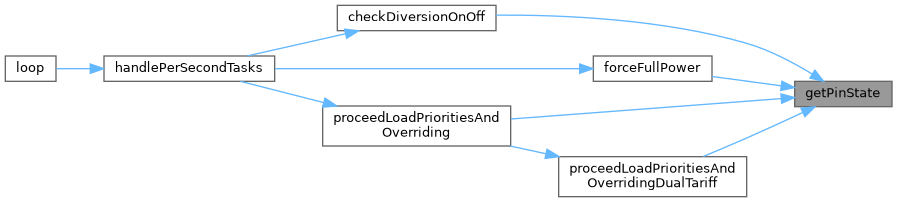

Here is the caller graph for this function:

◆ setPinOFF()

void setPinOFF ( const uint8_t pin )

inlineconstexpr

Set the Pin state to OFF for the specified pin.

Parameters

pin	pin to change [2..13]

Definition at line 160 of file utils_pins.h.

References bit_clear().

Referenced by initializeOldPCBPins(), setPinState(), test_setPinOFF(), and relayOutput::try_turnOFF().

Here is the call graph for this function:

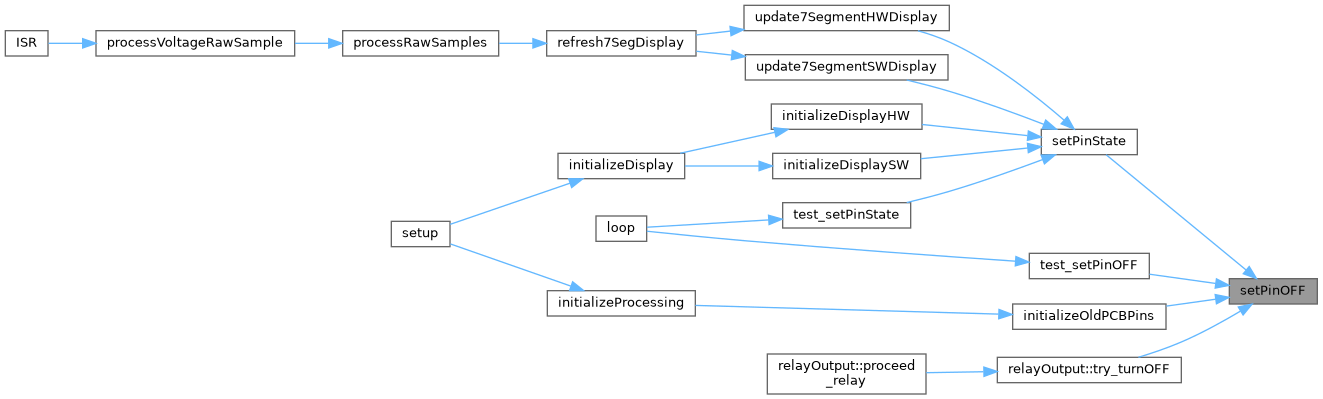

Here is the caller graph for this function:

◆ setPinON()

void setPinON ( const uint8_t pin )

inlineconstexpr

Set the Pin state to ON for the specified pin.

Parameters

pin	pin to change [2..13]

Definition at line 128 of file utils_pins.h.

References bit_set().

Referenced by setPinState(), test_setPinON(), and relayOutput::try_turnON().

Here is the call graph for this function:

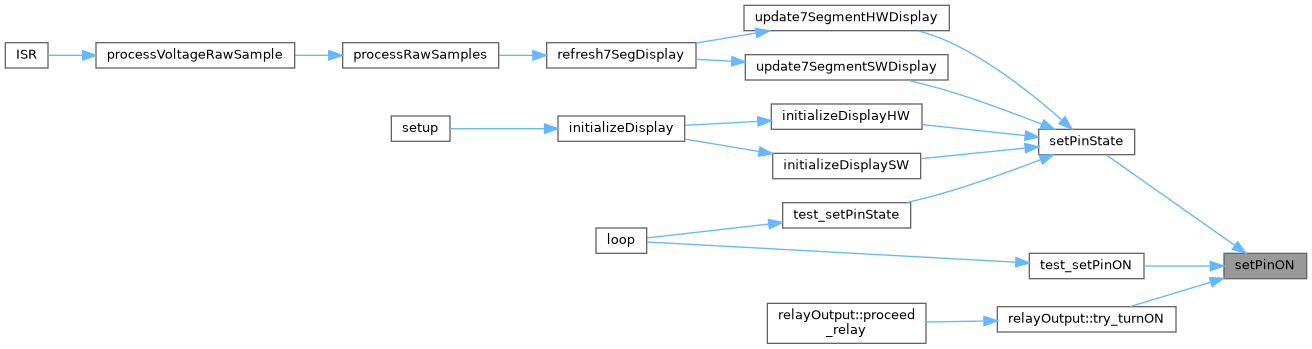

Here is the caller graph for this function:

◆ setPinsAsInputPullup()

void setPinsAsInputPullup ( const uint16_t pins )

inline

Set the pins as INPUT_PULLUP.

Parameters

pins	The pins to set as INPUT_PULLUP

Definition at line 226 of file utils_pins.h.

Referenced by initializeProcessing().

Here is the caller graph for this function:

◆ setPinsAsOutput()

void setPinsAsOutput ( const uint16_t pins )

inline

Set the pins as OUTPUT.

Parameters

pins	The pins to set as OUTPUT

Definition at line 215 of file utils_pins.h.

Referenced by initializeProcessing().

Here is the caller graph for this function:

◆ setPinsOFF()

void setPinsOFF ( const uint16_t pins )

inline

Set the Pins state to OFF.

Parameters

pins	The pins to change

Definition at line 181 of file utils_pins.h.

Referenced by test_setPinsOFF(), and updatePortsStates().

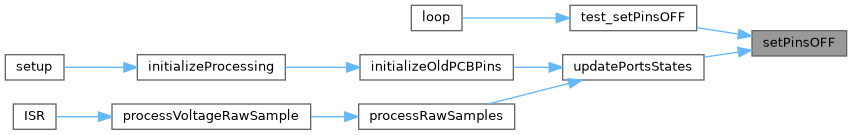

Here is the caller graph for this function:

◆ setPinsON()

void setPinsON ( const uint16_t pins )

inline

Set the Pins state to ON.

Parameters

pins	The pins to change

Definition at line 149 of file utils_pins.h.

Referenced by test_setPinsON(), and updatePortsStates().

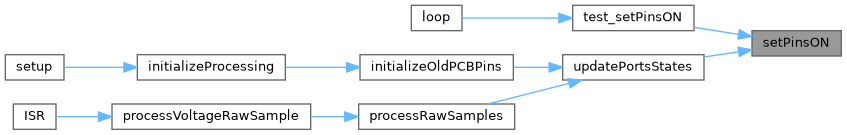

Here is the caller graph for this function:

◆ setPinState()

void setPinState	(	const uint8_t	pin,
		const bool	bState )

inlineconstexpr

Set the Pin state for the specified pin.

Parameters

pin	pin to change [2..13]
bState	state to be set

Definition at line 111 of file utils_pins.h.

References setPinOFF(), and setPinON().

Referenced by initializeDisplayHW(), initializeDisplaySW(), test_setPinState(), update7SegmentHWDisplay(), and update7SegmentSWDisplay().

Here is the call graph for this function:

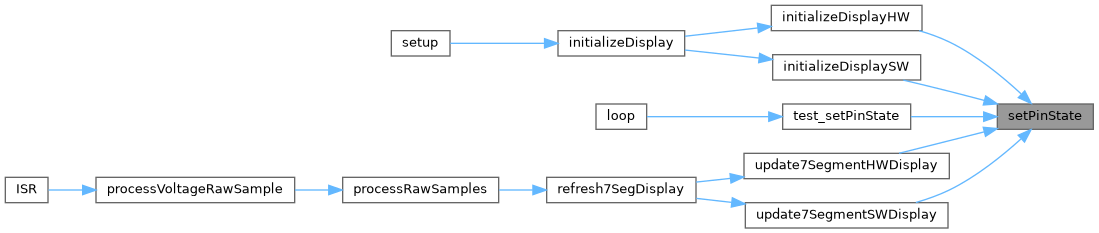

Here is the caller graph for this function:

◆ togglePin()

void constexpr togglePin ( uint8_t pin )

inlineconstexpr

Toggle the specified pin.

Definition at line 89 of file utils_pins.h.

References bit_set().

Referenced by handlePerSecondTasks(), and test_togglePin().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ unused_pin

uint8_t unused_pin { 0xff }

inlineconstexpr

unused pin

Definition at line 17 of file utils_pins.h.
