Template class for implementing a sliding average. More...

#include <movingAvg.h>

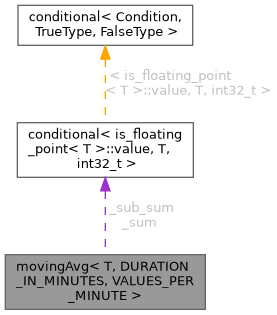

Collaboration diagram for movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >:

[legend]

Public Member Functions
void	addValue (const T &_value)
	Add a value.

void	clear ()
	Reset everything.

void	fillValue (const T &_value)

auto	getAverage () const
	Get the sliding average.

auto	getElement (uint8_t idx) const

constexpr uint8_t	getSize () const

Private Member Functions
void	_addValue (const T &_value)

void	_clear_sub ()

auto	_getAverage () const

Private Attributes
T	_ar [DURATION_IN_MINUTES] {}

uint8_t	_idx { 0 }

T	_sub_ar [VALUES_PER_MINUTE] {}

uint8_t	_sub_idx { 0 }

conditional< is_floating_point< T >::value, T, int32_t >::type	_sub_sum { 0 }

conditional< is_floating_point< T >::value, T, int32_t >::type	_sum { 0 }

Static Private Attributes
static constexpr float	invD { 1.0 / VALUES_PER_MINUTE }

static constexpr float	invN { 1.0 / DURATION_IN_MINUTES }

Detailed Description

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>
class movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >

Template class for implementing a sliding average.

Template Parameters

T	Type of values to be stored
DURATION_IN_MINUTES	Size of main array
VALUES_PER_MINUTE	Size of sub array

Note

Since the Arduino RAM is tiny, we need to store a few values as possible. Suppose, you want a sliding window of 10 minutes and receive a value every 5 seconds. With one single array, 10 x 12 values would be necessary to store. Using 2 arrays, one to store incoming values over 1 minute and one to store values every minutes, we need only 12 + 10 values. How it works :

the average is calculated over 1 minute with incoming values
this sub-average is added to the main array
the average is calculated on the main array

Drawback of this method: the average is updated only every minutes !

Definition at line 40 of file movingAvg.h.

Member Function Documentation

◆ _addValue()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

void movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_addValue ( const T & _value )

inlineprivate

Definition at line 171 of file movingAvg.h.

References _ar, _idx, and _sum.

Referenced by addValue().

Here is the caller graph for this function:

◆ _clear_sub()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

void movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_clear_sub ( )

inlineprivate

Definition at line 152 of file movingAvg.h.

References _sub_ar, _sub_idx, _sub_sum, i, and integral_constant< bool, is_same< float, remove_cv_t< T > >::value||is_same< double, remove_cv_t< T > >::value >::value.

Referenced by clear().

Here is the caller graph for this function:

◆ _getAverage()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

auto movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_getAverage ( ) const

inlineprivate

Definition at line 184 of file movingAvg.h.

References _sub_sum, and invD.

Referenced by addValue(), and getAverage().

Here is the caller graph for this function:

◆ addValue()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

void movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::addValue ( const T & _value )

inline

Add a value.

Parameters

_value Value to be added

Definition at line 81 of file movingAvg.h.

References _addValue(), _getAverage(), _sub_ar, _sub_idx, and _sub_sum.

Here is the call graph for this function:

◆ clear()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

void movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::clear ( )

inline

Reset everything.

Definition at line 47 of file movingAvg.h.

References _ar, _clear_sub(), _idx, _sum, i, and integral_constant< bool, is_same< float, remove_cv_t< T > >::value||is_same< double, remove_cv_t< T > >::value >::value.

Here is the call graph for this function:

◆ fillValue()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

void movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::fillValue ( const T & _value )

inline

Definition at line 95 of file movingAvg.h.

References _ar, _idx, _sum, and i.

◆ getAverage()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

auto movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::getAverage ( ) const

inline

Get the sliding average.

Returns: auto The sliding average

Note: This value is updated every minute, except for the special case of a duration of ONE minute. In this case, it is updated for each new input value.

Definition at line 115 of file movingAvg.h.

References _getAverage(), _sum, and invN.

Here is the call graph for this function:

◆ getElement()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

auto movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::getElement ( uint8_t idx ) const

inline

Definition at line 133 of file movingAvg.h.

References _ar, and integral_constant< bool, is_same< float, remove_cv_t< T > >::value||is_same< double, remove_cv_t< T > >::value >::value.

◆ getSize()

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

uint8_t movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::getSize ( ) const

inlinenodiscardconstexpr

Definition at line 146 of file movingAvg.h.

Member Data Documentation

◆ _ar

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

T movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_ar[DURATION_IN_MINUTES] {}

private

Definition at line 196 of file movingAvg.h.

Referenced by _addValue(), clear(), fillValue(), and getElement().

◆ _idx

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

uint8_t movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_idx { 0 }

private

Definition at line 190 of file movingAvg.h.

Referenced by _addValue(), clear(), and fillValue().

◆ _sub_ar

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

T movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_sub_ar[VALUES_PER_MINUTE] {}

private

Definition at line 195 of file movingAvg.h.

Referenced by _clear_sub(), and addValue().

◆ _sub_idx

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

uint8_t movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_sub_idx { 0 }

private

Definition at line 191 of file movingAvg.h.

Referenced by _clear_sub(), and addValue().

◆ _sub_sum

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

conditional<is_floating_point<T>::value,T,int32_t>::type movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_sub_sum { 0 }

private

Definition at line 193 of file movingAvg.h.

Referenced by _clear_sub(), _getAverage(), and addValue().

◆ _sum

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

conditional<is_floating_point<T>::value,T,int32_t>::type movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::_sum { 0 }

private

Definition at line 192 of file movingAvg.h.

Referenced by _addValue(), clear(), fillValue(), and getAverage().

◆ invD

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

float movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::invD { 1.0 / VALUES_PER_MINUTE }

staticconstexprprivate

Definition at line 198 of file movingAvg.h.

Referenced by _getAverage().

◆ invN

template<typename T, uint8_t DURATION_IN_MINUTES = 10, uint8_t VALUES_PER_MINUTE = 10>

float movingAvg< T, DURATION_IN_MINUTES, VALUES_PER_MINUTE >::invN { 1.0 / DURATION_IN_MINUTES }

staticconstexprprivate

Definition at line 199 of file movingAvg.h.

Referenced by getAverage().

The documentation for this class was generated from the following file:

Mk2_fasterControl_Full/movingAvg.h
