Configuration values to be set by the end-user. More...

#include "config_system.h"
#include "debug.h"
#include "types.h"
#include "utils_dualtariff.h"
#include "utils_relay.h"
#include "utils_temp.h"

Include dependency graph for config.h:

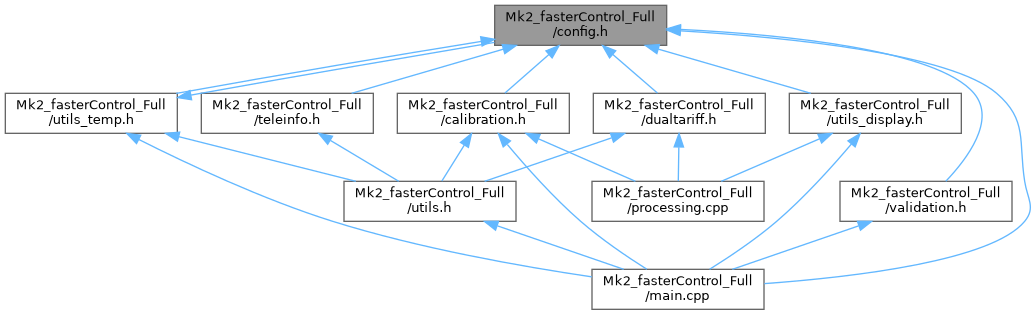

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	ENABLE_DEBUG

#define	SERIALOUT

#define	SERIALPRINT

Variables
constexpr bool	DIVERSION_PIN_PRESENT { true }

constexpr uint8_t	diversionPin { 15 }

constexpr bool	DUAL_TARIFF { false }

constexpr uint8_t	dualTariffPin { 0xff }

constexpr bool	EMONESP_CONTROL { false }

constexpr uint8_t	forcePin { 3 }

constexpr int16_t	iTemperatureThreshold { 100 }

constexpr uint8_t	loadPrioritiesAtStartup [NO_OF_DUMPLOADS] { 0 }

constexpr uint8_t	NO_OF_DUMPLOADS { 1 }

constexpr bool	OLD_PCB { false }

constexpr bool	OVERRIDE_PIN_PRESENT { true }

constexpr uint8_t	physicalLoadPin [NO_OF_DUMPLOADS] { 4 }

constexpr bool	RELAY_DIVERSION { false }

constexpr RelayEngine	relays { { { 0xff, 1000, 200, 1, 1 } } }

constexpr pairForceLoad	rg_ForceLoad [NO_OF_DUMPLOADS] { { -3, 2 } }

constexpr uint16_t	ROTATION_AFTER_SECONDS { 8u * 3600u }

constexpr	RotationModes { RotationModes::OFF }

constexpr uint8_t	rotationPin { 0xff }

constexpr SerialOutputType	SERIAL_OUTPUT_TYPE = SerialOutputType::IoT

constexpr bool	TEMP_SENSOR_PRESENT { false }

constexpr TemperatureSensing	temperatureSensing

constexpr DisplayType	TYPE_OF_DISPLAY { DisplayType::OLED }

constexpr uint8_t	ul_OFF_PEAK_DURATION { 8 }

constexpr bool	WATCHDOG_PIN_PRESENT { false }

constexpr uint8_t	watchDogPin { 0xff }

Detailed Description

Configuration values to be set by the end-user.

Author: Frédéric Metrich (frede.nosp@m.ric..nosp@m.metri.nosp@m.ch@l.nosp@m.ive.f.nosp@m.r)

Version: 0.1

Date: 2024-10-03

Copyright: Copyright (c) 2025

Definition in file config.h.

Macro Definition Documentation

◆ ENABLE_DEBUG

#define ENABLE_DEBUG

enable this line to include debugging print statements

Definition at line 21 of file config.h.

◆ SERIALOUT

#define SERIALOUT

Uncomment if a wired serial connection is used

Definition at line 23 of file config.h.

◆ SERIALPRINT

#define SERIALPRINT

include 'human-friendly' print statement for commissioning - comment this line to exclude.

Definition at line 22 of file config.h.

Variable Documentation

◆ DIVERSION_PIN_PRESENT

bool DIVERSION_PIN_PRESENT { true }

inlineconstexpr

set it to 'true' if you want to control diversion ON/OFF

Definition at line 38 of file config.h.

Referenced by checkDiversionOnOff(), getInputPins(), and initializeOldPCBPins().

◆ diversionPin

uint8_t diversionPin { 15 }

inlineconstexpr

if LOW, set diversion on standby

Definition at line 74 of file config.h.

Referenced by check_pins(), checkDiversionOnOff(), getInputPins(), and initializeOldPCBPins().

◆ DUAL_TARIFF

bool DUAL_TARIFF { false }

inlineconstexpr

set it to 'true' if there's a dual tariff each day AND the router is connected to the billing meter

Definition at line 44 of file config.h.

Referenced by getInputPins(), initializeOldPCBPins(), and proceedLoadPrioritiesAndOverriding().

◆ dualTariffPin

uint8_t dualTariffPin { 0xff }

inlineconstexpr

for 3-phase PCB, off-peak trigger

Definition at line 73 of file config.h.

Referenced by getInputPins(), initializeOldPCBPins(), and proceedLoadPrioritiesAndOverridingDualTariff().

◆ EMONESP_CONTROL

bool EMONESP_CONTROL { false }

inlineconstexpr

Definition at line 37 of file config.h.

Referenced by proceedLoadPrioritiesAndOverriding().

◆ forcePin

uint8_t forcePin { 3 }

inlineconstexpr

for 3-phase PCB, force pin

Definition at line 76 of file config.h.

Referenced by check_pins(), forceFullPower(), getInputPins(), initializeOldPCBPins(), proceedLoadPrioritiesAndOverriding(), and proceedLoadPrioritiesAndOverridingDualTariff().

◆ iTemperatureThreshold

int16_t iTemperatureThreshold { 100 }

inlineconstexpr

the temperature threshold to stop overriding in °C

Definition at line 88 of file config.h.

Referenced by printDualTariffConfiguration(), and proceedLoadPrioritiesAndOverridingDualTariff().

◆ loadPrioritiesAtStartup

uint8_t loadPrioritiesAtStartup[NO_OF_DUMPLOADS] { 0 }

inlineconstexpr

load priorities and states at startup

Definition at line 69 of file config.h.

Referenced by check_load_priorities(), initializeOldPCBPins(), and initializeProcessing().

◆ NO_OF_DUMPLOADS

uint8_t NO_OF_DUMPLOADS { 1 }

inlineconstexpr

number of dump loads connected to the diverter

Definition at line 35 of file config.h.

Referenced by calcBufferSize(), check_load_priorities(), initializeOldPCBPins(), initializeProcessing(), nextLogicalLoadToBeAdded(), nextLogicalLoadToBeRemoved(), printDualTariffConfiguration(), proceedHighEnergyLevel(), proceedLoadPrioritiesAndOverridingDualTariff(), proceedLowEnergyLevel(), processDataLogging(), updatePhysicalLoadStates(), and updatePortsStates().

◆ OLD_PCB

bool OLD_PCB { false }

inlineconstexpr

set it to 'true' if the old PCB is used

Definition at line 49 of file config.h.

Referenced by initializeProcessing().

◆ OVERRIDE_PIN_PRESENT

bool OVERRIDE_PIN_PRESENT { true }

inlineconstexpr

set it to 'true' if there's a override pin

Definition at line 40 of file config.h.

Referenced by forceFullPower(), getInputPins(), initializeOldPCBPins(), and proceedLoadPrioritiesAndOverriding().

◆ physicalLoadPin

uint8_t physicalLoadPin[NO_OF_DUMPLOADS] { 4 }

inlineconstexpr

for 1-phase PCB - "trigger" port is pin 4, "mode" port is pin 3

Definition at line 68 of file config.h.

Referenced by check_pins(), getOutputPins(), initializeOldPCBPins(), and updatePortsStates().

◆ RELAY_DIVERSION

bool RELAY_DIVERSION { false }

inlineconstexpr

set it to 'true' if a relay is used for diversion

Definition at line 43 of file config.h.

Referenced by calcBufferSize(), check_pins(), check_relay_pins(), getOutputPins(), handlePerSecondTasks(), initializeOldPCBPins(), loop(), printForJSON(), printForSerialText(), and sendTelemetryData().

◆ relays

RelayEngine relays { { { 0xff, 1000, 200, 1, 1 } } }

inlineconstexpr

config for relay diversion, see class definition for defaults and advanced options

Definition at line 79 of file config.h.

Referenced by calcBufferSize(), check_pins(), check_relay_pins(), getOutputPins(), handlePerSecondTasks(), initializeOldPCBPins(), loop(), printForJSON(), printForSerialText(), sendTelemetryData(), setUp(), test_get_importThreshold(), test_get_minOFF(), test_get_minON(), test_get_pin(), test_get_size(), test_get_surplusThreshold(), test_isRelayON(), test_relay_turnOFF(), and test_relay_turnON().

◆ rg_ForceLoad

pairForceLoad rg_ForceLoad[NO_OF_DUMPLOADS] { { -3, 2 } }

inlineconstexpr

force config for load #1 ONLY for dual tariff

Definition at line 84 of file config.h.

Referenced by _rg_OffsetForce< N, OffPeakDuration >::_rg_OffsetForce(), and printDualTariffConfiguration().

◆ ROTATION_AFTER_SECONDS

uint16_t ROTATION_AFTER_SECONDS { 8u * 3600u }

inlineconstexpr

rotates load priorities after this period of inactivity

Definition at line 92 of file config.h.

Referenced by proceedLoadPrioritiesAndOverriding().

◆ RotationModes

RotationModes { RotationModes::OFF }

inlineconstexpr

set it to 'OFF/AUTO/PIN' if you want manual/automatic rotation of priorities

Definition at line 39 of file config.h.

◆ rotationPin

uint8_t rotationPin { 0xff }

inlineconstexpr

if LOW, trigger a load priority rotation

Definition at line 75 of file config.h.

Referenced by check_pins(), getInputPins(), initializeOldPCBPins(), and proceedLoadPrioritiesAndOverriding().

◆ SERIAL_OUTPUT_TYPE

SerialOutputType SERIAL_OUTPUT_TYPE = SerialOutputType::IoT

inlineconstexpr

constexpr variable to set the serial output type

Definition at line 33 of file config.h.

Referenced by printConfiguration(), sendResults(), and setup().

◆ TEMP_SENSOR_PRESENT

bool TEMP_SENSOR_PRESENT { false }

inlineconstexpr

set it to 'true' if temperature sensing is needed

Definition at line 45 of file config.h.

Referenced by calcBufferSize(), check_pins(), TemperatureSensing< N >::initTemperatureSensors(), printForJSON(), printForSerialText(), TemperatureSensing< N >::readTemperature(), TemperatureSensing< N >::requestTemperatures(), sendTelemetryData(), setup(), and updateTemperature().

◆ temperatureSensing

TemperatureSensing temperatureSensing

inlineconstexpr

Initial value:

{ 0xff,

{ { 0x28, 0x1B, 0xD7, 0x6A, 0x09, 0x00, 0x00, 0xB7 } } }

list of temperature sensor Addresses

Definition at line 89 of file config.h.

Referenced by calcBufferSize(), check_pins(), printForJSON(), printForSerialText(), sendTelemetryData(), setup(), and updateTemperature().

◆ TYPE_OF_DISPLAY

DisplayType TYPE_OF_DISPLAY { DisplayType::OLED }

inlineconstexpr

set it to installed display including optional additional logic chips

Definition at line 51 of file config.h.

Referenced by check_pins(), configureValueForDisplay(), displayForced(), displayOff(), initializeDisplay(), refresh7SegDisplay(), setupOLED(), updateOLED(), and updateWatchdog().

◆ ul_OFF_PEAK_DURATION

uint8_t ul_OFF_PEAK_DURATION { 8 }

inlineconstexpr

Duration of the off-peak period in hours

Definition at line 83 of file config.h.

Referenced by printDualTariffConfiguration().

◆ WATCHDOG_PIN_PRESENT

bool WATCHDOG_PIN_PRESENT { false }

inlineconstexpr

set it to 'true' if there's a watch led

Definition at line 42 of file config.h.

Referenced by getOutputPins(), handlePerSecondTasks(), and initializeOldPCBPins().

◆ watchDogPin

uint8_t watchDogPin { 0xff }

inlineconstexpr

watch dog LED

Definition at line 77 of file config.h.

Referenced by check_pins(), getOutputPins(), handlePerSecondTasks(), and initializeOldPCBPins().
