Implements temperature sensing functionality for multiple sensors. More...

#include <utils_temp.h>

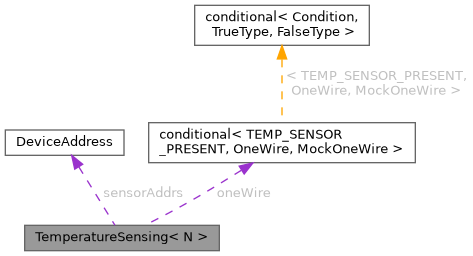

Collaboration diagram for TemperatureSensing< N >:

[legend]

Public Member Functions
constexpr	TemperatureSensing ()=delete

constexpr	TemperatureSensing (uint8_t pin, const DeviceAddress(&ref)[N])
	Construct a new Temperature Sensing object.

constexpr auto	get_pin () const
	Get the pin of the sensor(s).

constexpr auto	get_size () const
	Get the number of sensors.

void	initTemperatureSensors () const
	Initialize the Dallas temperature sensors.

int16_t	readTemperature (const uint8_t idx) const
	Reads the temperature of a specific sensor.

void	requestTemperatures () const
	Request temperature conversion for all sensors.

Private Types
using	ScratchPad = uint8_t[9]
	Represents a buffer for storing sensor data.

Private Attributes
const DeviceAddress	sensorAddrs [N]

const uint8_t	sensorPin { unused_pin }

Static Private Attributes
static conditional< TEMP_SENSOR_PRESENT, OneWire, MockOneWire >::type	oneWire

Detailed Description

template<uint8_t N>
class TemperatureSensing< N >

Implements temperature sensing functionality for multiple sensors.

The TemperatureSensing class manages temperature sensors connected via the OneWire bus. It supports initialization, temperature reading, and error handling for multiple sensors.

Template Parameters

N	The number of sensors connected to the system.

Initialization: Initializes the OneWire bus and requests temperature readings.
Temperature Reading: Reads and validates temperature data from individual sensors.
Error Handling: Handles disconnected or out-of-range sensors.
Compile-Time Configuration: Uses TEMP_ENABLED to include or exclude temperature sensing features.

Definition at line 105 of file utils_temp.h.

Constructor & Destructor Documentation

◆ TemperatureSensing() [1/2]

template<uint8_t N>

TemperatureSensing< N >::TemperatureSensing ( )

constexprdelete

◆ TemperatureSensing() [2/2]

template<uint8_t N>

TemperatureSensing< N >::TemperatureSensing	(	uint8_t	pin,
		const DeviceAddress(&)	ref[N] )

inlineconstexpr

Construct a new Temperature Sensing object.

This constructor initializes the TemperatureSensing object with the specified pin and a list of device addresses for the connected temperature sensors.

Template Parameters

N	The number of sensors connected to the system.

Parameters

pin	The pin number where the temperature sensors are connected.
ref	A reference to an array of `DeviceAddress` objects representing the addresses of the sensors.

Definition at line 135 of file utils_temp.h.

References sensorAddrs, and sensorPin.

Member Function Documentation

◆ get_pin()

template<uint8_t N>

auto TemperatureSensing< N >::get_pin ( ) const

inlineconstexpr

Get the pin of the sensor(s).

This method returns the pin number where the temperature sensors are connected.

Returns: constexpr auto The pin number.

Definition at line 202 of file utils_temp.h.

References sensorPin.

◆ get_size()

template<uint8_t N>

auto TemperatureSensing< N >::get_size ( ) const

inlineconstexpr

Get the number of sensors.

This method returns the number of temperature sensors connected to the system. It provides a compile-time constant value representing the total number of sensors.

Returns: constexpr auto The number of sensors.

Definition at line 190 of file utils_temp.h.

◆ initTemperatureSensors()

template<uint8_t N>

void TemperatureSensing< N >::initTemperatureSensors ( ) const

inline

Initialize the Dallas temperature sensors.

This method initializes the OneWire bus and sends a request to all connected sensors to start temperature conversion. It ensures that the sensors are ready for temperature readings.

Initializes the OneWire bus using the specified sensor pin.
Sends a CONVERT_TEMPERATURE command to all sensors on the bus.
This method should be called during system initialization to prepare the sensors.

Definition at line 173 of file utils_temp.h.

References oneWire, requestTemperatures(), sensorPin, and TEMP_SENSOR_PRESENT.

Here is the call graph for this function:

◆ readTemperature()

template<uint8_t N>

int16_t TemperatureSensing< N >::readTemperature ( const uint8_t idx ) const

inlinenodiscard

Reads the temperature of a specific sensor.

This method reads the temperature data from a specific sensor connected to the OneWire bus. It validates the data using CRC and ensures the temperature is within the acceptable range.

Parameters

idx	The index of the sensor to read.

Returns: int16_t The temperature in hundredths of a degree Celsius (e.g., 2500 = 25.00°C). Returns DEVICE_DISCONNECTED_RAW if the sensor is disconnected or CRC validation fails. Returns OUTOFRANGE_TEMPERATURE if the temperature is out of the defined range.

Communicates with the sensor using the OneWire protocol.
Reads the scratchpad memory of the sensor to retrieve temperature data.
Validates the data using CRC and checks for out-of-range values.

Definition at line 223 of file utils_temp.h.

References DEVICE_DISCONNECTED_RAW, oneWire, OUTOFRANGE_TEMPERATURE, READ_SCRATCHPAD, sensorAddrs, TEMP_RANGE_HIGH, and TEMP_SENSOR_PRESENT.

◆ requestTemperatures()

template<uint8_t N>

void TemperatureSensing< N >::requestTemperatures ( ) const

inline

Request temperature conversion for all sensors.

This method sends a command to all sensors on the OneWire bus to start temperature conversion. It ensures that all connected sensors begin measuring their respective temperatures.

The method uses the OneWire protocol to communicate with all sensors on the bus.
It sends a CONVERT_TEMPERATURE command to initiate temperature conversion.
This method does not block; the actual temperature reading must be performed later.

Definition at line 151 of file utils_temp.h.

References CONVERT_TEMPERATURE, oneWire, and TEMP_SENSOR_PRESENT.

Referenced by initTemperatureSensors().

Here is the caller graph for this function:
