Represents a single relay configuration and its behavior. More...

#include <utils_relay.h>

Public Member Functions
constexpr	relayOutput ()=delete

constexpr	relayOutput (const uint8_t _relay_pin)
	Construct a new relay Config object with default parameters.

constexpr	relayOutput (uint8_t _relay_pin, int16_t _surplusThreshold, int16_t _importThreshold)
	Construct a new relay Config object with default/custom parameters.

constexpr	relayOutput (uint8_t _relay_pin, int16_t _surplusThreshold, int16_t _importThreshold, uint16_t _minON, uint16_t _minOFF)
	Construct a new relay Config object with custom parameters.

constexpr auto	get_importThreshold () const
	Get the import threshold which will turns OFF the relay.

constexpr auto	get_minOFF () const
	Get the minimum OFF-time in seconds.

constexpr auto	get_minON () const
	Get the minimum ON-time in seconds.

constexpr auto	get_pin () const
	Get the control pin of the relay.

constexpr auto	get_surplusThreshold () const
	Get the surplus threshold which will turns ON the relay.

void	inc_duration () const
	Increment the duration of the current state.

auto	isRelayON () const
	Return the state.

void	printRelayConfiguration (uint8_t idx) const
	Print the configuration of the current relay-diversion.

bool	proceed_relay (const int32_t currentAvgPower) const
	Proceed with the relay.

Private Member Functions
bool	try_turnOFF () const
	Turn OFF the relay if the 'time' condition is met.

bool	try_turnON () const
	Turn ON the relay if the 'time' condition is met.

Private Attributes
uint16_t	duration { 0 }

const int16_t	importThreshold { 200 }

const uint16_t	minOFF { 5 * 60 }

const uint16_t	minON { 5 * 60 }

const uint8_t	relay_pin { unused_pin }

bool	relayIsON { false }

const int16_t	surplusThreshold { -1000 }

Detailed Description

Represents a single relay configuration and its behavior.

The relayOutput class encapsulates the configuration and state management of a single relay. It provides methods to control the relay based on surplus and import thresholds, as well as minimum ON/OFF durations.

Relay Control: The relay is turned ON when the surplus threshold is exceeded and turned OFF when the import threshold is crossed.
Time Constraints: Minimum ON and OFF durations ensure stable operation.
State Management: The class tracks the relay's current state and the duration of its current state.

Definition at line 40 of file utils_relay.h.

Constructor & Destructor Documentation

◆ relayOutput() [1/4]

relayOutput::relayOutput ( )

constexprdelete

◆ relayOutput() [2/4]

relayOutput::relayOutput ( const uint8_t _relay_pin )

inlineexplicitconstexpr

Construct a new relay Config object with default parameters.

Parameters

_relay_pin Control pin for the relay

Definition at line 50 of file utils_relay.h.

◆ relayOutput() [3/4]

relayOutput::relayOutput	(	uint8_t	_relay_pin,
		int16_t	_surplusThreshold,
		int16_t	_importThreshold )

inlineconstexpr

Construct a new relay Config object with default/custom parameters.

Parameters

_relay_pin	Control pin for the relay
_surplusThreshold	Surplus threshold to turn relay ON (positive value, e.g., 1000)
_importThreshold	Import threshold to turn relay OFF Positive values: turn OFF when importing > threshold (normal installations) Negative values: turn OFF when surplus < abs(threshold) (battery systems) Zero: turn OFF when importing > 0W (problematic with batteries)

Definition at line 65 of file utils_relay.h.

◆ relayOutput() [4/4]

relayOutput::relayOutput	(	uint8_t	_relay_pin,
		int16_t	_surplusThreshold,
		int16_t	_importThreshold,
		uint16_t	_minON,
		uint16_t	_minOFF )

inlineconstexpr

Construct a new relay Config object with custom parameters.

Parameters

_relay_pin	Control pin for the relay
_surplusThreshold	Surplus threshold to turn relay ON (positive value, e.g., 1000)
_importThreshold	Import threshold to turn relay OFF Positive values: turn OFF when importing > threshold (normal installations) Negative values: turn OFF when surplus < abs(threshold) (battery systems) Zero: turn OFF when importing > 0W (problematic with batteries)
_minON	Minimum duration in minutes to leave relay ON
_minOFF	Minimum duration in minutes to leave relay OFF

Definition at line 82 of file utils_relay.h.

Member Function Documentation

◆ get_importThreshold()

auto relayOutput::get_importThreshold ( ) const

inlineconstexpr

Get the import threshold which will turns OFF the relay.

Returns: constexpr auto

Definition at line 112 of file utils_relay.h.

Here is the caller graph for this function:

◆ get_minOFF()

auto relayOutput::get_minOFF ( ) const

inlineconstexpr

Get the minimum OFF-time in seconds.

Returns: constexpr auto

Definition at line 132 of file utils_relay.h.

Here is the caller graph for this function:

◆ get_minON()

auto relayOutput::get_minON ( ) const

inlineconstexpr

Get the minimum ON-time in seconds.

Returns: constexpr auto

Definition at line 122 of file utils_relay.h.

Here is the caller graph for this function:

◆ get_pin()

auto relayOutput::get_pin ( ) const

inlineconstexpr

Get the control pin of the relay.

Returns: constexpr auto

Definition at line 92 of file utils_relay.h.

Here is the caller graph for this function:

◆ get_surplusThreshold()

auto relayOutput::get_surplusThreshold ( ) const

inlineconstexpr

Get the surplus threshold which will turns ON the relay.

Returns: constexpr auto

Definition at line 102 of file utils_relay.h.

Here is the caller graph for this function:

◆ inc_duration()

void relayOutput::inc_duration ( ) const

inline

Increment the duration of the current state.

This function must be called every second.

Definition at line 152 of file utils_relay.h.

◆ isRelayON()

auto relayOutput::isRelayON ( ) const

inline

Return the state.

Returns: auto

Definition at line 142 of file utils_relay.h.

◆ printRelayConfiguration()

void relayOutput::printRelayConfiguration ( uint8_t idx ) const

inline

Print the configuration of the current relay-diversion.

Definition at line 198 of file utils_relay.h.

Here is the call graph for this function:

◆ proceed_relay()

bool relayOutput::proceed_relay ( const int32_t currentAvgPower ) const

inline

Proceed with the relay.

Returns: bool True if state has changed

Definition at line 165 of file utils_relay.h.

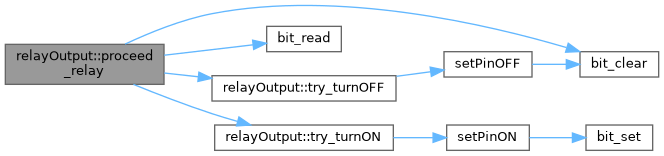

Here is the call graph for this function:

◆ try_turnOFF()

bool relayOutput::try_turnOFF ( ) const

inlineprivate

Turn OFF the relay if the 'time' condition is met.

Returns: bool True if state has changed

Definition at line 257 of file utils_relay.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ try_turnON()

bool relayOutput::try_turnON ( ) const

inlineprivate

Turn ON the relay if the 'time' condition is met.

Returns: bool True if state has changed

Definition at line 235 of file utils_relay.h.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ duration

uint16_t relayOutput::duration { 0 }

mutableprivate

Duration of the current state

Definition at line 281 of file utils_relay.h.

◆ importThreshold

const int16_t relayOutput::importThreshold { 200 }

private

Import threshold to turn relay OFF (positive = import mode, negative = surplus mode)

Definition at line 277 of file utils_relay.h.

◆ minOFF

const uint16_t relayOutput::minOFF { 5 * 60 }

private

Minimum duration in seconds the relay is turned OFF

Definition at line 279 of file utils_relay.h.

◆ minON

const uint16_t relayOutput::minON { 5 * 60 }

private

Minimum duration in seconds the relay is turned ON

Definition at line 278 of file utils_relay.h.

◆ relay_pin

const uint8_t relayOutput::relay_pin { unused_pin }

private

Pin associated with the relay

Definition at line 275 of file utils_relay.h.

◆ relayIsON

bool relayOutput::relayIsON { false }

mutableprivate

True if the relay is ON

Definition at line 282 of file utils_relay.h.

◆ surplusThreshold

const int16_t relayOutput::surplusThreshold { -1000 }

private

Surplus threshold to turn relay ON

Definition at line 276 of file utils_relay.h.

The documentation for this class was generated from the following file:

Mk2_3phase_RFdatalog_temp/utils_relay.h
